Mobile 5300HD Grain Feeder

From: $6,465.00
+ GST

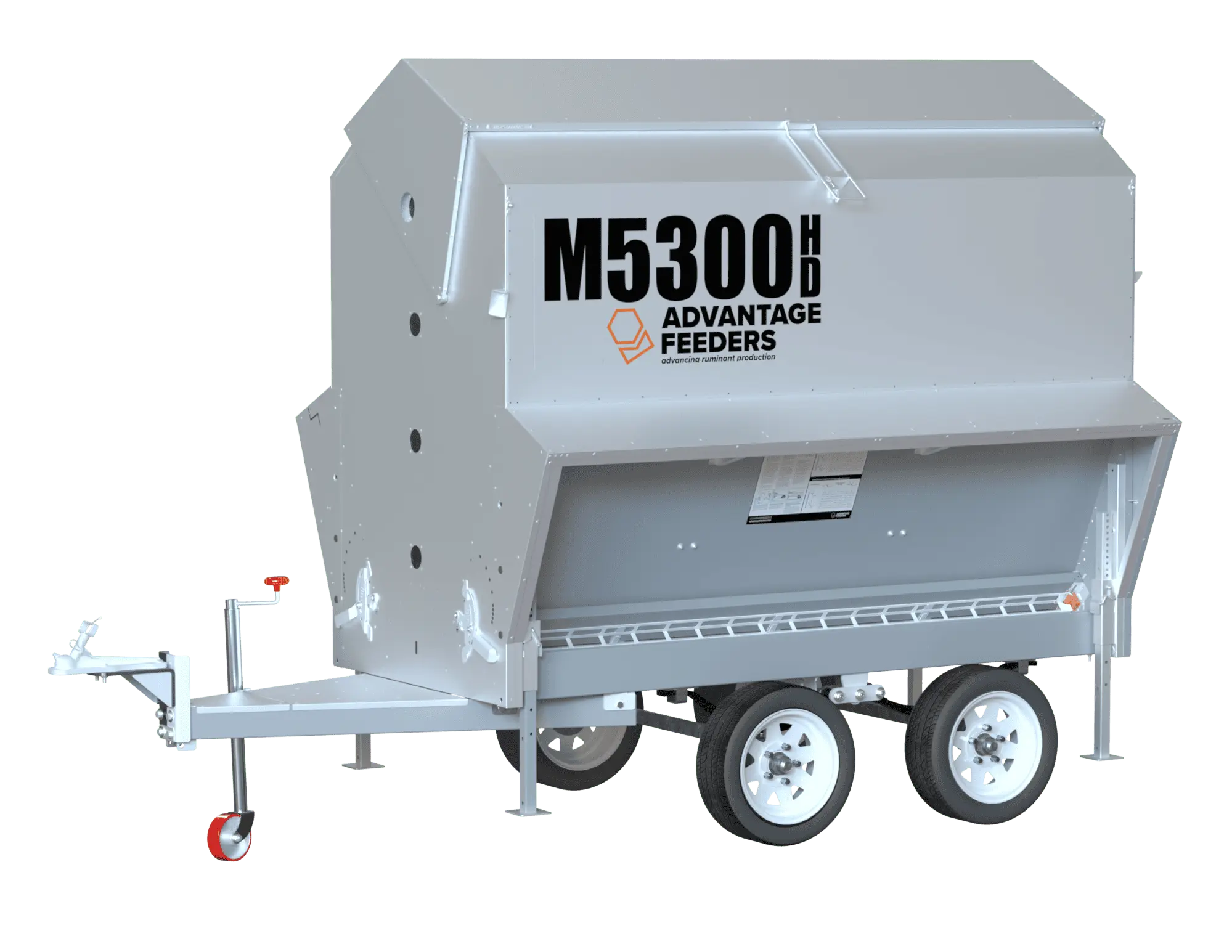

Advantage Feeders M5300HD mobile grain feeder

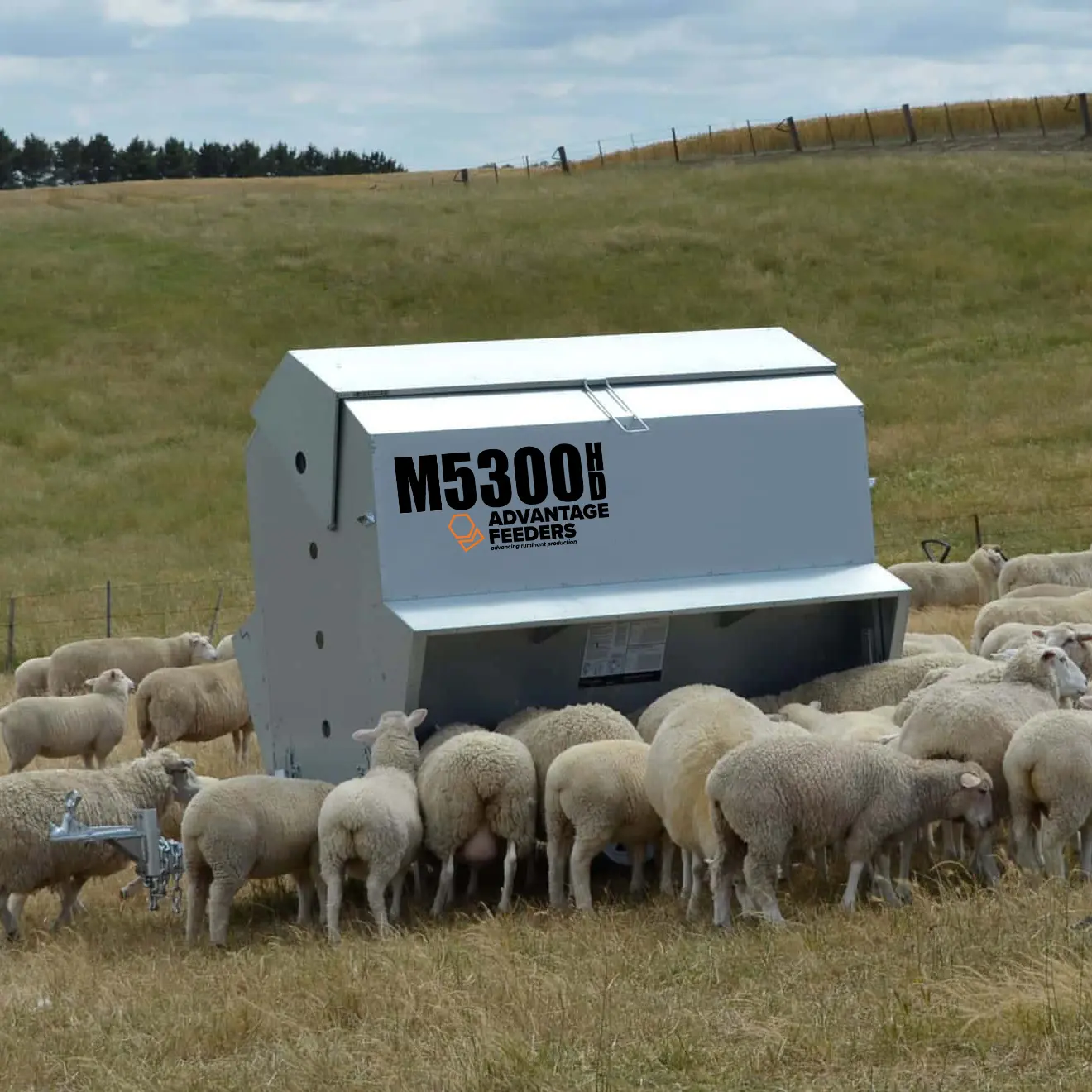

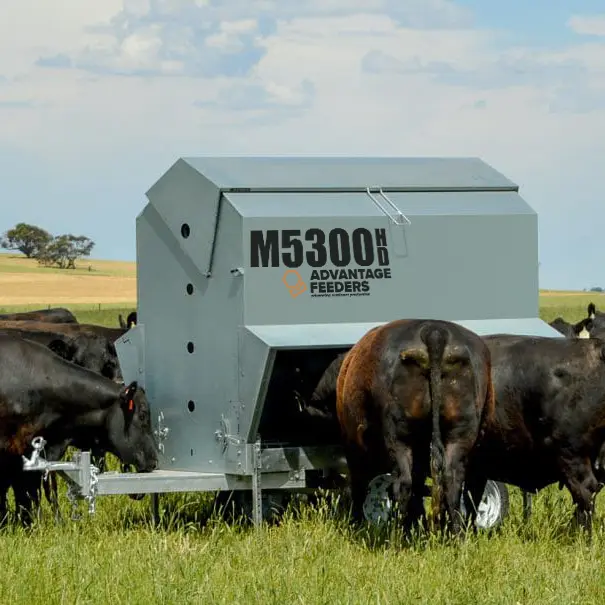

The M5300HD Grain Feeder from Advantage Feeders delivers exceptional feed control and flexibility, making it ideal for mixed livestock operations including cattle, sheep, and goats.

With a 108-bushel capacity, this feeder is ideal for pasture or feedlot use, accommodating multiple classes of livestock while minimizing refill frequency and maximizing feed efficiency — all with the added convenience of on-farm towing.

The trailer features a jockey stand, load-sharing tandem axle suspension, and four retractable stabilizer stands to secure the feeder safely when in use.

Rear pull kits for multi-feeder towing are available for this model.

This product comes with a 5-Year Extended Warranty.
Lamb creep feeding panel included.

Please note: Mobile units are designed for on-farm towing only and are not approved for public road use.

$6,465.00
+ GST
Product Assembly Options:
  • Feed capacity: 108 bu
  • Pasture (cattle / calves): 40–50 head
  • Feedlot (cattle): 30–35 head
  • Pasture (ewes / lambs): 200–250 head
  • Feedlot (ewes / lambs): 120–150 head
  • Ewes & lambs (creep feeding): 200–250 combined
  • Goats (pasture): 200–250 head
  • Deer (pasture): 120–150 head
  • Pigs: 120–150 head
  • Heavy-duty construction: Built to withstand rugged farm use
  • Adjustable height: Adjustable height settings for sheep, goats, cattle, and extended cattle applications

Dimensions & Weight

  • Overall Weight: 1,240 lb
  • Overall Length: 12’0″
  • Overall Width: 5’6″
  • Dimensions at Sheep Height: 12’0″ × 5’6″ × 7’5″
  • Dimensions at Cattle Height: 12’0″ × 5’6″ × 8’1″
  • Fill Height: Approximately 7″ below overall feeder height
  • Flat-Pack Dimensions (L × W × H): 8’0″ × 3’10” × 1’4″

Feed Capacity & Weight

  • Feed Volume: 108 bu
  • Feed Weight – Wheat / Lupins: 3.3 tons
  • Feed Weight – Barley / Pellets: 2.8 tons
  • Feed Weight – Oats: 2.3 tons

The M5300HD is packed with innovative features and heavy-duty engineering designed for durability, efficiency, and ease of use. It includes a numbered Adjuster Guard Handle design, Flow Assist, Adjuster Lock, and upgraded Roof Pivot, along with strategically located Cleaning Tool and Tube Spanner storage positions.

The feeder is built with reinforced stainless steel troughs, upper and lower adjusters, heavy-duty stabilizer stands, and a channel-reinforced trough with a 45-degree angled design and approximately 4″ feed-flow area for optimal feed distribution.

High stability is provided by the hopper being positioned over the wheels, along with vertical and sidewall bracing, dual-tab adjuster braces, four locking bolts on the lower adjusters, and an Adjuster Guard locking system. Dual-position Adjuster Guards also provide additional flexibility when feeding dusty rations.

Additional convenience comes from eight approximately 3″ round sight glasses, two volume stickers, a drop-lock-pin roof locking system, painted notch system on the adjusters, and straightforward feeder-height adjustment.

Cleaning tools, a tube spanner, and secure tool storage are supplied. The feeder also includes four tires, two safety chains, an approximately 7’10” trough length, a deep 4 5/16″ trough, gutters designed to drain water away from the feeder, weather protection over the troughs, and reinforced roof edges.

Optional attachments include a mineral attachment, calf creep feeding gate, lamb creep feeding panel, and rubber mats.

The M5300HD comes with a 5-Year Extended Warranty, 30-day money-back guarantee, standard operating procedure, user guide, and access to trial reports, with the option to purchase the feeder flat-packed or fully assembled.

Accessories
Mineral attachments, rubber mats, creep panels and gates to extend your feeder as your operation’s needs change.

The Advantage Feeders Rubber Mats provides durable ground protection around your feeders, reducing mud, soil erosion, and wear in high-traffic livestock areas.

+ GST

The Advantage Feeders Mineral Attachment is a purpose‑built livestock mineral feeder designed to provide loose lick and mineral supplements to stock without waste. It’s engineered to be versatile and easy to deploy across farm environments, with sturdy brackets included to hang the unit on gates, fences, posts, or directly onto Advantage Feeders equipment.

+ GST

A pair of heavy‑duty hungry boards that bolt onto Advantage Feeders to widen the fill opening by ~16 in, making loader filling faster and reducing waste.

+ GST
